所屬分類： 電纜填充材料

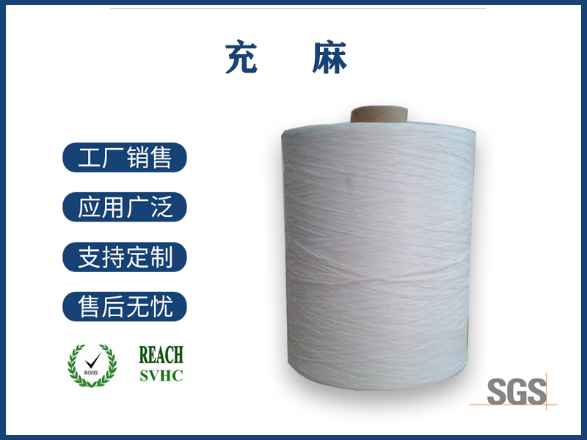

產品簡介：[產品說明]: 又叫充麻，以聚丙烯為基料，經過專用機器開網加工制成高強力網狀填充材料，可根據客戶需求加捻，或者加入環保阻燃劑制成阻燃型填充繩。Product Description: Also known as hemp-filled yarn, base on polypropylene, made from high tenacity net filling materials through special machines, twisting accor
[產品說明]: 又叫充麻，以聚丙烯為基料，經過專用機器開網加工制成高強力網狀填充材料，可根據客戶需求加捻，或者加入環保阻燃劑制成阻燃型填充繩。
Product Description: Also known as hemp-filled yarn, base on polypropylene, made from high tenacity net filling materials through special machines, twisting according to customer's requirement, or add environmentally friendly flame retardant agent.
[應用方式]: 普遍使用于復合型通信電纜、鋼絲絞繩，電力電纜及特種阻燃耐炎電纜的輕質結構填充。
Application: Commonly used for filling in complex communication cables, steel wire rope, power cables and special fire-retardant cable.
一、主要技術指標：
Main specification:
| 產品規格Specification | 每公斤長度Length/KG(M/KG) | 伸長率Elongation（%） | 拉斷力Pulling strength（N） | 熱收縮率Heat shrinkage（%） | 捻后直徑Twisted diameter（mm） |
| 2000D | 4500 | 15↓ | 30↑ | 2.5↓ | 0.4 |
| 4000D | 2400 | 15↓ | 50↑ | 2.5↓ | 0.5 |
| 5000D | 1800 | 15↓ | 55↑ | 2.5↓ | 0.6 |
| 8000D | 1125 | 15↓ | 80↑ | 2.5↓ | 1.0 |
| 10000D | 935 | 15↓ | 90↑ | 2.5↓ | 1.2 |
| 12000D | 750 | 15↓ | 100↑ | 2.5↓ | 1.5 |
| 15000D | 600 | 15↓ | 150↑ | 2.5↓ | 1.8 |
| 20000D | 450 | 15↓ | 200↑ | 2.5↓ | 2.2 |
| 30000D | 300 | 15↓ | 300↑ | 2.5↓ | 2.6 |
| 注：除以上規格外，可以根據客戶特殊要求訂做。In addition to the above specifications, other special requirements can design according to customers | |||||
二、顏色：常規顏色為白色和透明兩種顏色，阻燃充麻為淡藍色。
Color: Common color is white and transparent, Flame retardant filled yarn is light blue.
三、特點：柔軟性極佳,重量輕、非吸濕性材料、強度不受水份影響、抗拉強度高、抗酸堿及抗霉性佳、高頻絕緣性能好、耐電壓、無毒環保。
Electrical characteristics: Excellent flexibility, light weight, non-absorbent material, the intensity is not affected by moisture, high tensile strength, good anti-acid and alkaline, high insulation properties and good resistance to voltage, drug-free and environmental.
四、包裝方式：編織袋或紙箱包裝。
Packaging: Woven bag or carton packaging
