所屬分類： 電纜填充材料
產品簡介：[產品說明]: 本產品主要由棉紗和化纖組成，用于電線電纜填充，也可用于橡膠電纜外層紡編織。Product Description: This product is mainly made up of cotton and chemical fiber, used for filling in wire and cable, can also be used for braiding in rubber cable.[應用方式]: 主要作為填充，使線纜可以達到真圓，同時

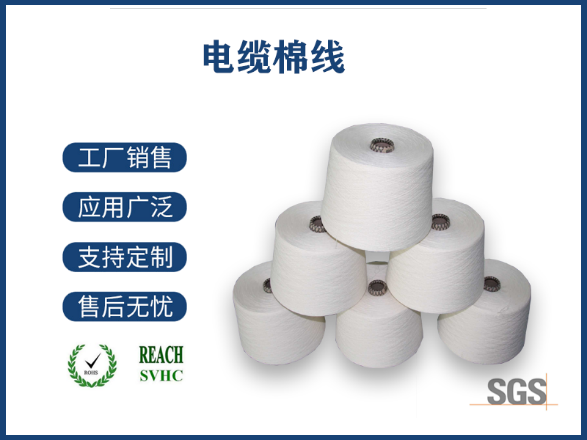

[產品說明]: 本產品主要由棉紗和化纖組成，用于電線電纜填充，也可用于橡膠電纜外層紡編織。
Product Description: This product is mainly made up of cotton and chemical fiber, used for filling in wire and cable, can also be used for braiding in rubber cable.
[應用方式]: 主要作為填充，使線纜可以達到真圓，同時可以增加線纜的彎曲性能。
Application: Mainly as a filler to make cable can meet true circle, at the same time can increase the bending properties of the cable.
一、主要技術指標：
Main specification:
| 產品規格Specification | 斷裂強度Breaking strength（kg/0.5M） | 比重（g/m）公差15%proportion（g/m）tolerance 15% | 斷裂伸長率Elongation at break（%） |
| 5支/1股5 piece/1 strand | ≥2.5 | 0.118±0.017 | ≥10 |
| 5支/5股5 piece/5 strand | ≥2.5 | 0.590±0.088 | ≥10 |
| 5支/6股5 piece/6 strand | ≥2.5 | 0.708±0.106 | ≥10 |
| 5支/10股5 piece/10 strand | ≥2.5 | 1.180±0.177 | ≥10 |
| 7支/1股7 piece/1 strand | ≥2.5 | 0.084±0.012 | ≥10 |
| 7支/5股7 piece/5 strand | ≥2.5 | 0.420±0.063 | ≥10 |
| 7支/6股7 piece/6 strand | ≥2.5 | 0.504±0.075 | ≥10 |
| 7支/10股7 piece/10 strand | ≥2.5 | 0.840±0.126 | ≥10 |
| 10支/1股10 piece/1 strand | ≥2.5 | 0.059±0.008 | ≥10 |
| 10支/5股10 piece/5 strand | ≥2.5 | 0.295±0.044 | ≥10 |
| 10支/6股10 piece/6 strand | ≥2.5 | 0.354±0.053 | ≥10 |
| 10支/10股10 piece/10 strand | ≥2.5 | 0.590±0.088 | ≥10 |
| 注：除以上規格外，可以根據客戶特殊要求訂做。In addition to the above specifications, other special requirements can design according to customers | |||
二、顏色：本色白，漂白，黑色和各種顏色。
Color: White, bleaching, black and other color
三、棉線特性：柔軟性佳、重量輕、拉力好、耐溫、無毒環保。本公司可根據客戶之要求進行染色和絞合。
Characteristics: Good softness, light weight, good tension, temperature resistance, drug-free and environmental. Our company can dyeing and stranded according to customer's requirements.
四、包裝方式：編織袋或紙箱包裝。每包20-25KG.
Packaging: Woven bag or carton packaging, 20-25 kg per bag.
